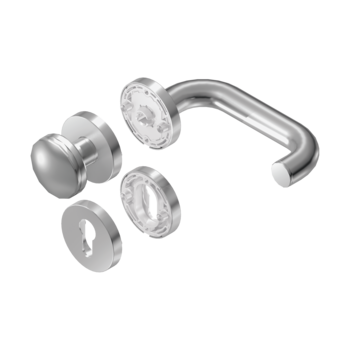

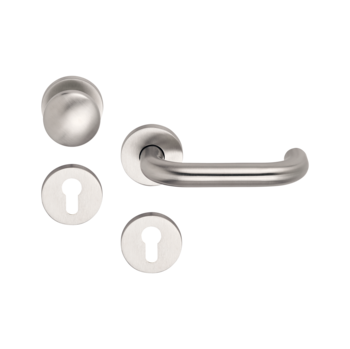

B-70200-00-0-8_ma00 B-70200-00-0-8_ma01
B-70200-00-0-8_ma00 B-70200-00-0-8_ma01

B-72200-00-0-8 | WROG FS K1.0 Rondo H1.0 PC matt ss

Part No.B-72200-00-0-8
EAN 4015540762888
Further product information Variants
Area of application
Door technology
Product type
Rosette
Gross weight
640 G
Packing unit
2 EA
Minimum ordering unit
1 EA
Login

Please enter your login credentials to view prices or to order items

No content available

Attributes

Cover
with rosettes
user class
Grade 4
handle fixing
Entrance set spindle
Version
with lever handle H1.0, with round knob K1.0
Diameter of lever handle
21 mm
Shape of lever handle
U-shape
Lever handle height
70 mm
Type of fixing
concealed screw connection
Lever handle length
145 mm
Diameter
55 mm
Characteristic
Fixed knob on rosette
Form
Round
Knob diameter
50 mm
Knob design
Round
Knob height
57 mm
Bearing point
maintenance-free, fixed bearing
Material
Stainless steel
Standard
DIN EN 179DIN 18273DIN EN 1906
Cover thickness outside
9 mm
Cover thickness inside
9 mm
Type of door
Escape doors
Max. door leaf thickness
52 mm
Min. door leaf thickness
42 mm
Square follower
9 mm
Opening direction of hinges
Left/right
No content available
Variants
The following variants are available for this product:
article
article description
placeholder-shop
B-72200-00-0-1 | Rosette | WROG FS K1.0 Rondo H1.0 PC EV1
Rosette, Version with lever handle H1.0, with round knob K1.0, Opening direction of hinges Left/right
placeholder-shop
B-72200-00-0-3 | Rosette | WROG FS K1.0 Rondo H1.0 PC PVD
Rosette, Version with lever handle H1.0, with round knob K1.0, Opening direction of hinges Left/right
placeholder-shop
B-72200-00-0-6V | Rosette | WROG FS K1.0 Rondo H1.0 PC 9005 matt
Rosette
placeholder-shop
B-72200-00-0-7 | Rosette | WROG FS K1.0 Rondo H1.0 PC RAL9016
Rosette
placeholder-shop
B-72200-01-0-8 | Rosette | WROG FS K1.0 Rondo H1.1 PC matt ss
Rosette, Version with lever handle H1.1, with round knob K1.0, Opening direction of hinges Non-handed lever handle
B-70200-02-0-8_ma00
B-72200-02-0-8 | Rosette | WROG FS K1.0 Belc- H2.0 PZ matt ss
Rosette, Type name BELCANTO H2.0, Version with lever handle H2.0, with round knob K1.0, Opening direction of hinges Left/right
placeholder-shop
B-72200-02-0-99 | Rosette | WROG FS K1.0 Belc. H2.0 PC ss hygienic
Rosette, Type name BELCANTO
placeholder-shop
B-72200-03-0-8 | Rosette | WROG FS K1.0 Belc. H2.1 PC matt ss
Rosette
placeholder-shop
B-72200-03-0-DU | Rosette | WROG FS K1.0 Belc. H2.1 PC RAL 7016
Rosette
placeholder-shop
B-72200-04-0-1 | Rosette | WROG FS K1.0 Belc-P.H3.0 PC EV1
Rosette, Version with lever handle H3.0, with round knob K1.0, Opening direction of hinges Non-handed lever handle
B-70200-04-0-8_ma00
B-72200-04-0-8 | Rosette | WROG K1.0 Belc-P.H3.0 PZ FS XM
Rosette, Version with lever handle H3.0, with round knob K1.0, Opening direction of hinges Non-handed lever handle
placeholder-shop
B-72200-05-0-8 | Rosette | WROG FS K1.0 Belc. P.H3.1 PC matt ss
Rosette
B-70200-06-0-8_ma00
B-72200-06-0-8 | Rosette | WROG K1.0 Office H4.0 PC FS matt ss
Rosette, Version with lever handle H4.0, with round knob K1.0, Opening direction of hinges Non-handed lever handle
B-70200-07-0-8_ma00
B-72200-07-0-8 | Rosette | WROG FS K1.0 Legato H5.0 PC matt ss
Rosette, Version with lever handle H5.0, with round knob K1.0, Opening direction of hinges Non-handed lever handle
placeholder-shop
B-72200-08-0-1 | Rosette | WROG FS K1.0 Tremolo H6.0 PC EV1
Rosette, Type name Round knob K1.0, Version with lever handle H6.0, with round knob K1.0, Opening direction of hinges Left/right
placeholder-shop
B-72200-08-0-3V | Rosette | WROG FS K1.0 Tremolo H6.0 PC PVD matt
Rosette
B-70200-08-0-8_ma00
B-72200-08-0-8 | Rosette | WROG FS K1.0 Tremolo H6.0 PC,matt ss
Rosette, Type name Round knob K1.0, Version with lever handle H6.0, with round knob K1.0, Opening direction of hinges Left/right
B-70200-09-0-8_ma00
B-72200-09-0-8 | Rosette | WROG FS K1.0 Dirige. H7.0 PC matt ss
Rosette, Version with lever handle H7.0, with round knob K1.0, Opening direction of hinges Left/right
placeholder-shop
B-72200-0D-0-8 | Rosette | WROG FS K1.0 ball knob K2.1 PC matt ss
Rosette
View all variants
