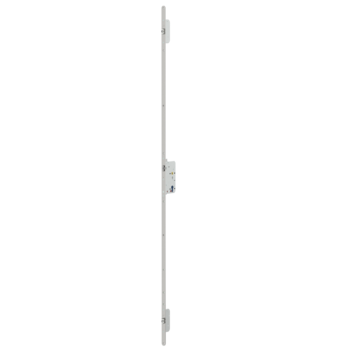

6-39008-06-R-8_kd30

6-39008-06-R-8 | SEC2112-65/72/24x3/1750/730/760/RK

Part No.6-39008-06-R-8
EAN 4015540901362
Further product information Variants
Area of application (specified)
Locks
Application system
SECURY 2112
Product type
Panic multi-point lock
Description of finish
Brushed stainless steel
Gross weight
2.986 KG
Packing unit
1 EA
Minimum ordering unit
1 EA
Login

Please enter your login credentials to view prices or to order items

Content

SECURY 2112 65/72 sf2 Follower: 9mm Marking notch: 890mm Flat faceplate 24x3mm L:1750,0mm Round Dims: A1 730,0mm B1 760,0mm Panic function C Fire-retardant 'FH' Single-leaf A-opener: optional Ground stainless steel

Attributes

Backset
65 mm
Faceplate dimension (in mm)
24 x 3
Hole distance
72 mm
Locking type (material short text)
AUT2
Interior square of follower
9 mm
Top locking position 1 (A1)
730 mm
Faceplate length
1.750 mm
Type of faceplate
flat faceplate
Faceplate end
Round
Panic function
Panic function C
Locking system
self-locking
Bottom locking position 1 (B1)
760 mm
Locking type
From marking notch upwards and downwards respectively 1 Automatic latchbolt.
Number of additional locks
2
Marking notch
890 mm
Fire/smoke protection
FH – for fire-retardant doors
Number of leaves
Single-leaf
A-opener
Nachrüstbar
Version
Lever handle-operated, Automatic
Type No.
2112
Cylinder hole-type
Profile cylinder
Test certificates/Standards
DIN 18250, DIN EN 1125, DIN 4102, DIN EN 1634, DIN EN 179
Standard
DIN 18250DIN EN 1125DIN 4102DIN EN 1634DIN EN 179
Colour of faceplate
stainless steel
Supplement
with steel swarf protection sleeves
Latch characteristics
Latchbolt with trigger lever
Handle height
890 mm
Characteristics of deadbolt
Without deadbolt
Finish of lock case
galvanised
Finish of faceplate
matt
Lock case
closed
Width of lock case
90 mm
Length of lock case
165 mm
Thickness of lock case
15,5 mm
Lock class
Grade 4
Characteristic of faceplate
Round
Type of door
Smoke protection door, Escape door, Fire protection door
Door characteristic
Flush door
Follower
Clamping follower
Single-component material follower
Steel
Single-component material latch
Steel
Single-component material deadbolt
Without deadbolt
Single-component material lock case
Steel
Single-component material faceplate
Stainless steel
Single-component material locking elements
Steel

Installation, operating and maintenance instructions

General installation instructions for locking devices according to EN 1125, EN 179, EN 12209, EN 14846
PDF (4MB)
Deutsch, Englisch, Französisch, Spanisch

Catalogue data in PDF format

6-39008-06-R-x_kd01.pdf
PDF (1MB)
Deutsch, Englisch
Variants
The following variants are available for this product:
article
article description

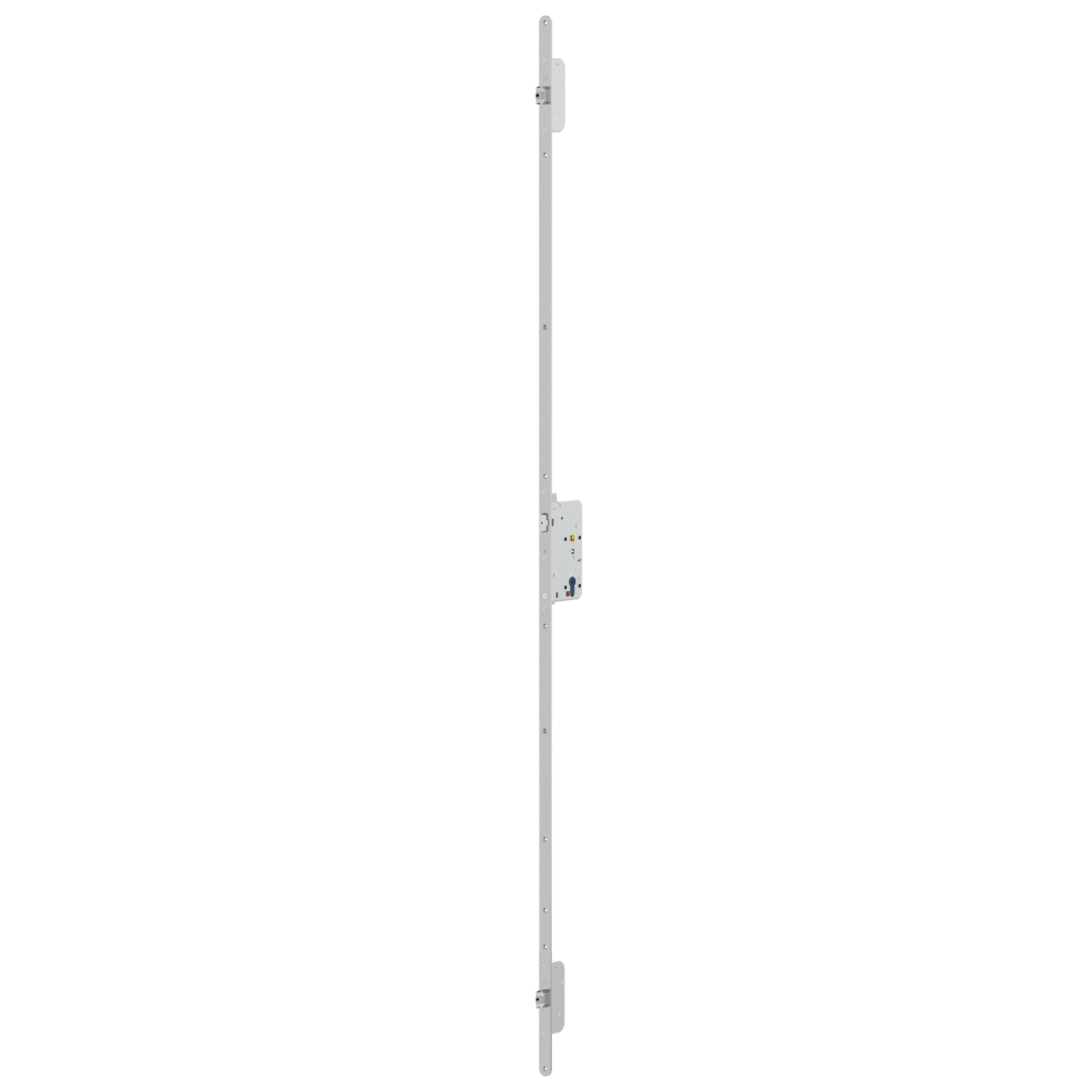

6-39008-06-L-8_kd30
6-39008-06-L-8 | Panic multi-point lock | SEC2112-65/72/24x3/1750/730/760/RK
Panic multi-point lock, Type No. 2112, Locking type AUT2, Backset 65 mm, Hole distance 72 mm, Interior square of follower 9 mm, Type of faceplate Flachstulp, mullion dimension 24 x 3
