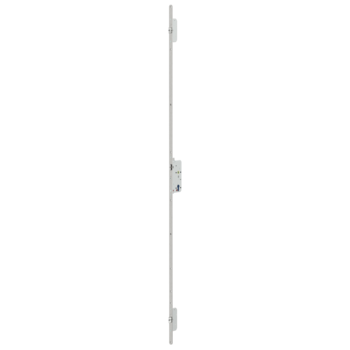

6-37870-13-R-8 | SEC2166-55/72/20x3/1750/730/760/RK
Part No.6-37870-13-R-8
EAN 4015540921223
1 Version found

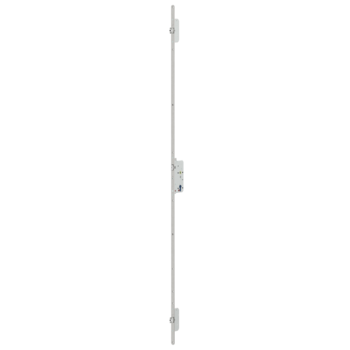

6-37870-13-L-8 | Panic multi-point lock | SEC2166-55/72/20x3/1750/730/760/RK
Part No.6-37870-13-L-8
EAN4015540921216
No content available
Attributes
Backset
55 mm
Faceplate dimension (in mm)
20 x 3
Hole distance
72 mm
Locking type (material short text)
sf2
Interior square of follower
9 mm
Top locking position 1 (A1)
730 mm
Faceplate length
1.750 mm
Type of faceplate
Flachstulp
Locking system
self-locking
Faceplate end
Round
Panic function
Panic function E
Bottom locking position 1 (B1)
760 mm
Locking type
From marking notch upwards and downwards respectively 1 Automatic latchbolt.
Number of additional locks
2
Marking notch
890 mm
Number of leaves
Single-leaf
A-opener
optional
Version
Lever handle-operated, Automatic, gesicherter Fallenfeststeller
Type No.
2166
Cylinder hole-type
Profile cylinder
Test certificates/Standards
DIN EN 1125, DIN EN 179, VdS B
Standard
DIN EN 1125DIN EN 179VdS B
Colour of faceplate
stainless steel
Supplement
with key-controlled latch holdback
Latch characteristics
Latchbolt with trigger lever
Handle height
890 mm
Characteristics of deadbolt
Without deadbolt
Finish of lock case
galvanised
Finish of faceplate
matt
Lock case
closed
Width of lock case
80 mm
Length of lock case
165 mm
Thickness of lock case
15,5 mm
Characteristic of faceplate
Round
Type of door
Escape door, Anti-panic door
Door characteristic
Rebated door
Follower
Clamping follower
Single-component material follower
Steel
Single-component material latch
Steel
Single-component material deadbolt
Without deadbolt
Single-component material lock case
Steel
Single-component material faceplate
Stainless steel
Single-component material locking elements
Steel
