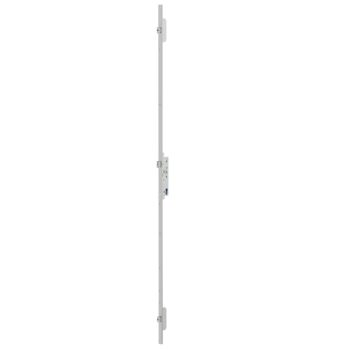

6-B1918-16-L-8_kd30

6-B1918-16-L-8 | BS44-PZ-U24x6

Part No.6-B1918-16-L-8
EAN 4015540983672
Further product information Variants
Area of application
Door technology
Area of application (specified)
Locks
Application system
SECURY 1918
Product type
Multi-point lock
Description of finish
Ground stainless steel
Gross weight
2.563 G
Packing unit
1 EA
Minimum ordering unit
1 EA
Login

Please enter your login credentials to view prices or to order items

Content

SECURY 1918 44/92 Follower: 9mm Marking notch: 890mm U-faceplate 24x6x6x2mm L:1750,0mm Square Dims: A1 730,0mm B1 760,0mm Without Panic function With reversible latchbolt Single-leaf Ground stainless steel

Attributes

Backset
44 mm
Faceplate dimension (in mm)
24 x 6 x 6 x 2
Hole distance
92 mm
Interior square of follower
9 mm
Top locking position 1 (A1)
730 mm
Faceplate length
1.750 mm
Type of faceplate
U-Stulp
Faceplate end
Square
Panic function
Without panic function
Bottom locking position 1 (B1)
760 mm
Marking notch
890 mm
Number of leaves
Single-leaf
Cylinder hole-type
Profile cylinder
Type of latch
With reversible latchbolt

Installation and assembly instructions

General installation instructions for locking devices according to EN 1125, EN 179, EN 12209, EN 14846
PDF (4MB)
Deutsch, Englisch, Französisch, Spanisch
Installation instructions for RR locks
PDF (14MB)
Neutral, Deutsch

Catalogue data in PDF format

6-B1918-16-L-x_kd01.pdf
PDF (1MB)
Deutsch, Englisch
Variants
The following variants are available for this product:
article
article description
6-B1918-11-L-8_kd30
6-B1918-11-L-8 | Multi-point lock | BS35-PZ-24x3
Multi-point lock, Backset 35 mm, Hole distance 92 mm, Interior square of follower 9 mm, Type of faceplate Flachstulp, mullion dimension 24 x 3
6-B1918-12-L-8_kd30
6-B1918-12-L-8 | Multi-point lock | BS40-PZ-24x3
Multi-point lock, Backset 40 mm, Hole distance 92 mm, Interior square of follower 9 mm, Type of faceplate Flachstulp, mullion dimension 24 x 3
6-B1918-13-L-8_kd30
6-B1918-13-L-8 | Multi-point lock | BS45-PZ-24x3
Multi-point lock, Backset 45 mm, Hole distance 92 mm, Interior square of follower 9 mm, Type of faceplate Flachstulp, mullion dimension 24 x 3
6-B1918-14-L-8_kd30
6-B1918-14-L-8 | Multi-point lock | BS34-PZ-U24x6
Multi-point lock, Backset 34 mm, Hole distance 92 mm, Interior square of follower 9 mm, Type of faceplate U-Stulp, mullion dimension 24 x 6 x 6 x 2
6-B1918-15-L-8_kd30
6-B1918-15-L-8 | Multi-point lock | BS39-PZ-U24x6
Multi-point lock, Backset 39 mm, Hole distance 92 mm, Interior square of follower 9 mm, Type of faceplate U-Stulp, mullion dimension 24 x 6 x 6 x 2
6-B1918-17-L-8_kd30
6-B1918-17-L-8 | Multi-point lock | BS34-PZ-U24x6-S
Multi-point lock, Backset 34 mm, Hole distance 92 mm, Interior square of follower 9 mm, Type of faceplate U-Stulp, mullion dimension 24 x 6 x 6 x 2
View all variants
