5000_ma00

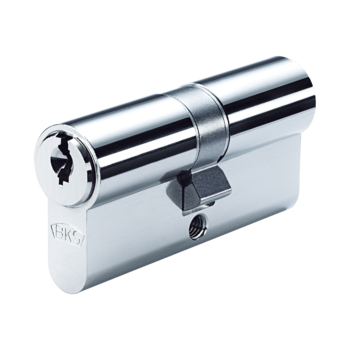

B 5000 0021 | Profile cylinder,N, 31/31mm

Part No.B 5000 0021
EAN 4015540551093
Product description Technical data Downloads
Product type
Locking cylinder
Description of finish
Nickel-plated, matt
Gross weight
267 G
Packing unit
1 EA
Minimum ordering unit
1 EA
Login

Please enter your login credentials to view prices or to order items

19 Variants found
5000_ma00
B 5000 0022 | Locking cylinder | Profile cylinder,N, 31/35mm
Part No.B 5000 0022
EAN4015540551130
To the product
5000_ma00
B 5000 0023 | Locking cylinder | Profile cylinder,N, 31/40mm
Part No.B 5000 0023
EAN4015540551147
To the product
5000_ma00
B 5000 0024 | Locking cylinder | Profile cylinder,N, 31/45mm
Part No.B 5000 0024
EAN4015540551154
To the product
5000_ma00
B 5000 0025 | Locking cylinder | Profile cylinder,N, 31/50mm
Part No.B 5000 0025
EAN4015540551161
To the product
5000_ma00
B 5000 0026 | Locking cylinder | Profile cylinder,N, 31/55mm
Part No.B 5000 0026
EAN4015540551178
To the product
5000_ma00
B 5000 0027 | Locking cylinder | Profile cylinder,N, 31/60mm
Part No.B 5000 0027
EAN4015540551185
To the product
5000_ma00
B 5000 0039 0001 | Locking cylinder | Profile cylinder,N,31/160,NW,3 keys
Part No.B 5000 0039 0001
EAN4015540945182
To the product
5000_ma00
B 5000 0042 | Locking cylinder | Profile cylinder,N, 35/35mm
Part No.B 5000 0042
EAN4015540551192
To the product
5000_ma00
B 5000 0043 | Locking cylinder | Profile cylinder,N, 35/40mm
Part No.B 5000 0043
EAN4015540551208
To the product
5000_ma00
B 5000 0044 | Locking cylinder | Profile cylinder,N, 35/45mm
Part No.B 5000 0044
EAN4015540551215
To the product
5000_ma00
B 5000 0045 | Locking cylinder | Profile cylinder,N, 35/50mm
Part No.B 5000 0045
EAN4015540551222
To the product
5000_ma00
B 5000 0046 | Locking cylinder | Profile cylinder,N, 35/55mm
Part No.B 5000 0046
EAN4015540551239
To the product
5000_ma00
B 5000 0063 | Locking cylinder | Profile cylinder,N, 40/40mm
Part No.B 5000 0063
EAN4015540551246
To the product
5000_ma00
B 5000 0064 | Locking cylinder | Profile cylinder,N, 40/45mm
Part No.B 5000 0064
EAN4015540551253
To the product
5000_ma00
B 5000 0065 | Locking cylinder | Profile cylinder,N, 40/50mm
Part No.B 5000 0065
EAN4015540551260
To the product
5000_ma00
B 5000 0066 | Locking cylinder | Profile cylinder,N, 40/55mm
Part No.B 5000 0066
EAN4015540551277
To the product
5000_ma00
B 5000 0067 | Locking cylinder | Profile cylinder,N, 40/60mm
Part No.B 5000 0067
EAN4015540551284
To the product
5000_ma00
B 5000 0069 | Locking cylinder | Profile cylinder,N, 40/70mm
Part No.B 5000 0069
EAN4015540551840
To the product
5000_ma00
B 5000 0084 | Locking cylinder | Profile cylinder,N, 45/45mm
Part No.B 5000 0084
EAN4015540551291
To the product
View all variants
No content available

Attributes

Version
6 pins
Length A
31 mm
Width of cylinder body
10 mm
Number of fixing screw holes
1
Diameter of fixing screw
M5
Diameter of cylinder plug
17 mm
Characteristic
with anti-drill protection (hardened drive pin), anti-bump protection
Colour of fixing screw
nickel-plated
Fire/smoke protection
door-leaf height – for fire-resistant doors
Function
keyed different
Suitable for
Application in master key systems
Shipment
with fixing screw
Length of fixing screw
80 mm
Material of key
Brass
Material of fixing screw
Steel
Material of cylinder
Brass
Standard
DIN EN 18252DIN EN 1303
Finish
matt
Number of keys
3 St.
Key version
can be inserted from both sides, reversible key
Key related security
EN1303-Grade 6
Cylinder height
33 mm

Installation and assembly instructions

Installation instructions profile cylinder
PDF (7MB)
Deutsch, Englisch, Französisch, Niederländisch, Polnisch, Tschechisch, Slowakisch, Ungarisch, Italienisch
Installation instructions service cylinder series 50-51
PDF (9MB)
Deutsch, Englisch, Französisch, Niederländisch
Contents overview assembly case system livius Series 50
PDF (2MB)
Deutsch, Englisch, Französisch
