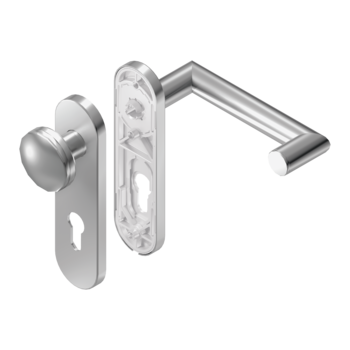

B-72210-04-0-8 | WKSG K1.0 Belc-P.H3.0 PZ72 FS XM round

Part No.B-72210-04-0-8

EAN 4015540762970

Further product information Variants

Area of application

Door technology

Product type

Lever handle

Gross weight

762 G

Packing unit

2 EA

Minimum ordering unit

1 EA

Please enter your login credentials to view prices or to order items

No content available

Attributes

Cover

Short backplate

user class

Grade 4

handle fixing

Entrance set spindle

Version

with lever handle H3.0, with round knob K1.0

Diameter of lever handle

21 mm

Shape of lever handle

Mitre, U-shape

Lever handle height

70 mm

Type of fixing

concealed screw connection

Lever handle length

145 mm

Characteristic

Fixed knob on backplate

Hole distance

72 mm

Form

oval

Knob diameter

50 mm

Knob design

Round

Knob height

57 mm

Bearing point

maintenance-free, fixed bearing

Material

Stainless steel

Standard

DIN 18273DIN EN 179DIN EN 1906

Thickness of exterior backplate

9 mm

Thickness of interior backplate

9 mm

Type of door

Escape doors

Square follower

9 mm

Opening direction of hinges

Non-handed lever handle

No content available

Variants

The following variants are available for this product:

article

article description

B-72210-00-0-1 | Lever handle | WKSG K1.0 Rondo H1.0 PZ72 FS EV1 round

Lever handle, Hole distance 72 mm, Version with lever handle H1.0, with round knob K1.0, overall width 45 mm, Opening direction of hinges Non-handed lever handle

B-72210-00-0-3 | Lever handle | WKSG K1.0 Rondo H1.0 PZ72 FS PVD round

Lever handle, Hole distance 72 mm, Version with lever handle H1.0, with round knob K1.0, overall width 45 mm, Opening direction of hinges Non-handed lever handle

B-72210-00-0-7 | Lever handle | WKSG FS K1.0 Rondo H1.0 PC72 9016 round

Lever handle

B-72210-00-0-8 | Lever handle | WKSG K1.0 Rondo H1.0 PZ72 FS XM round

Lever handle, Hole distance 72 mm, Version with lever handle H1.0, with round knob K1.0, overall width 45 mm, Opening direction of hinges Non-handed lever handle
