B-70200-09-0-8_ma00 B-70200-09-0-8_ma01
B-70200-09-0-8_ma00 B-70200-09-0-8_ma01

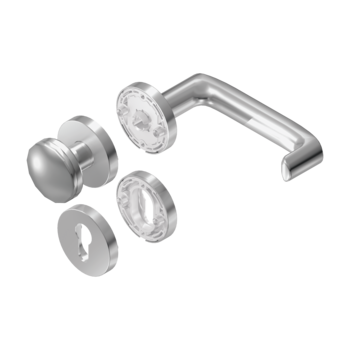

B-70200-09-0-8 | WROG K1.0 Dirig.H7.0 PC matt ss

Part No.B-70200-09-0-8
EAN 4015540760174
Weitere Produktinformationen Varianten
Area of application
Door technology
Area of application (specified)
Turn-Only
Application system
SECURY
Product type
Lever handle
Gross weight
558 G
Packing unit
1 EA
Minimum ordering unit
1 EA
Login

Please enter your login credentials to view prices or to order items

No content available

Attributes

Type of set
Entrance set
Operation on inside/outside
Interior lever handle with exterior knob
Cover
with rosettes
user class
Grade 4
Clearance screw connection
38 mm
handle fixing
Entrance set spindle
Version
with lever handle H7.0, with round knob K1.0
Diameter of lever handle
21 mm
Shape of lever handle
U-shape
Lever handle height
70 mm
Outer diameter
55 mm
Type of fixing
concealed screw connection
Lever handle bearing
Fixed bearing on inside
Lever handle length
138 mm
Diameter
55 mm
Characteristic
Fixed knob on rosette
Form
Round
Material
Stainless steel
Lug
With lugs
Finish
matt
Design of rosette
Round
Type of backplate
Rosette
Cover thickness outside
9 mm
Cover thickness inside
9 mm
Type of door
Entrance doors
Max. door leaf thickness
42 mm
Min. door leaf thickness
37 mm
Square follower
8 mm
Opening direction of hinges
Left/right

Installation and assembly instructions

Installation instructions for project hardware B-70xxx / B-72xxx
PDF (4MB)
Deutsch
Variants
The following variants are available for this product:
article
article description
placeholder-shop
B-70200-00-0-1 | Lever handle | WROG K1.0 Rondo H1.0 PC EV1
Lever handle, Version with lever handle H1.0, with round knob K1.0, Opening direction of hinges Left/right
B-70200-00-0-8_ma00
B-70200-00-0-8 | Lever handle | WROG K1.0 Rondo H1.0 PC satin ss
Lever handle, Version with lever handle H1.0, with round knob K1.0, Opening direction of hinges Left/right
placeholder-shop
B-70200-01-0-8 | Lever handle | WROG K1.0 Rondo H1.1 PC matt ss
Lever handle, Version with lever handle H1.1, with round knob K1.0, Opening direction of hinges Non-handed lever handle
B-70200-02-0-8_ma00
B-70200-02-0-8 | Lever handle | WROG K1.0 Belcanto H2.0 PC matt ss
Lever handle, Version with lever handle H2.0, with round knob K1.0, Opening direction of hinges Left/right
placeholder-shop
B-70200-02-0-99 | Lever handle | WROG K1.0 Belc. H2.0 PC matt ss hygienic
Lever handle
placeholder-shop
B-70200-03-0-DU | Lever handle | WROG K1.0 Belc. H2.1 PC RAL 7016
Lever handle
B-70200-04-0-8_ma00
B-70200-04-0-8 | Lever handle | WROG K1.0 Belcanto P.H3.0 PC matt ss
Lever handle, Version with lever handle H3.0, with round knob K1.0, Opening direction of hinges Left/right
placeholder-shop
B-70200-05-0-8 | Lever handle | WROG K1.0 Belc. P.H3.1 PC matt ss
Lever handle
B-70200-06-0-8_ma00
B-70200-06-0-8 | Lever handle | WROG K1.0 Office H4.0 PC satin ss
Lever handle, Version with lever handle H4.0, with round knob K1.0, Opening direction of hinges Left/right
B-70200-07-0-8_ma00
B-70200-07-0-8 | Lever handle | WROG K1.0 Legato H5.0 PC satin ss
Lever handle, Version with lever handle H5.0, with round knob K1.0, Opening direction of hinges Non-handed lever handle
B-70200-08-0-8_ma00
B-70200-08-0-8 | Lever handle | WROG K1.0 Tremolo H6.0 PC matt ss
Lever handle, Version with lever handle H6.0, with round knob K1.0, Opening direction of hinges Left/right
placeholder-shop
B-70200-40-0-8 | Lever handle | WROG K1.0 Rondo H1.0 OS matt ss
Lever handle, Version with lever handle H1.0, with round knob K1.0, Opening direction of hinges Left/right
