B-73030-02-0-8_ma00 B-73030-02-0-8_ma01
B-73030-02-0-8_ma00 B-73030-02-0-8_ma01

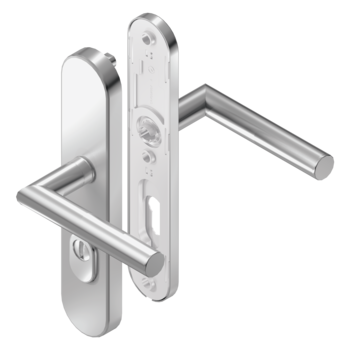

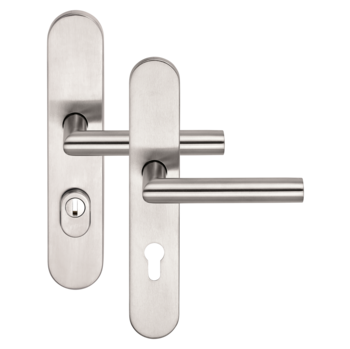

B-75030-02-0-8 | DRG ES3 FS Belcato H2.0 ZC72 matt ss rd

Part No.B-75030-02-0-8
EAN 4015540930225
Further product information Variants
Area of application
Door technology
Gross weight
2.25 KG
Packing unit
2 EA
Minimum ordering unit
1 EA
Login

Please enter your login credentials to view prices or to order items

No content available

Attributes

Cover
Long backplate
user class
Grade 4
handle fixing
Square spindle
Version
with lever handle H2.0, with cylinder cover
Diameter of lever handle
21 mm
Shape of lever handle
Mitre, straight
Lever handle height
70 mm
Type of fixing
concealed screw connection
Lever handle length
135 mm
Hole distance
72 mm
Form
oval
Bearing point
fixed bearing, maintenance-free
Material
Stainless steel
Standard
DIN EN 1906DIN 18257DIN 18273
Width of exterior backplate
50 mm
Width of interior backplate
45 mm
Length of exterior backplate
250 mm
Length of interior backplate
252 mm
Thickness of exterior backplate
15 mm
Thickness of interior backplate
9 mm
Type of door
Entrance doors
Max. door leaf thickness
69 mm
Square follower
9 mm
Opening direction of hinges
Non-handed lever handle

Installation, operating and maintenance instructions

C59700011 security hardware ES3
PDF (3MB)
Deutsch, Englisch, Französisch, Spanisch
Variants
The following variants are available for this product:
article
article description
placeholder-shop
B-75030-00-0-1 | DRG ES3 FS Rondo H1.0 ZA72 EV1 RD
Hole distance 72 mm | Version with cylinder cover, with lever handle H1.0
placeholder-shop
B-75030-00-0-6V | DRG ES3 FS Rondo H1.0 ZC72 9005 matt rd
B-73030-00-0-8_ma00
B-75030-00-0-8 | DRG ES3 FS Rondo H1.0 ZA72 XM RD
Hole distance 72 mm | Version with cylinder cover, with lever handle H1.0
placeholder-shop
B-75030-01-0-8 | DRG ES3 FS Rondo H1.0 ZA72 XM RD
Hole distance 72 mm | Version with cylinder cover, with lever handle H1.1
B-73030-04-0-8_ma00
B-75030-04-0-8 | DRG ES3 FS Belca.P.H3.0 ZA72 XM RD
Hole distance 72 mm | Version with cylinder cover, with lever handle H3.0
placeholder-shop
B-75030-07-0-8 | DRG ES3 FS Legato H5.0 ZC72 ma ss rd
B-73030-08-0-8_ma00
B-75030-08-0-8 | DRG ES3 FS Tremolo H6.0 ZC72 matt ss rd
B-73030-09-0-8_ma00
B-75030-09-0-8 | DRG ES3 FS DIRIG. H7.0 ZC72 ma ss round
placeholder-shop
B-75030-20-0-1 | DRG ES3 FS Rondo H1.0 ZA92 EV1 RD
Hole distance 92 mm | Version with cylinder cover, with lever handle H1.0
B-73030-00-0-8_ma00
B-75030-20-0-8 | DRG ES3 FS Rondo H1.0 ZA92 ss matt round
Hole distance 92 mm | Version with cylinder cover, with lever handle H1.0
placeholder-shop
B-75030-21-0-8 | DRG ES3 FS Rondo H1.1 ZC92 matt ss rd
Hole distance 92 mm | Version with cylinder cover, with lever handle H1.1
placeholder-shop
B-75030-28-0-8 | DRG ES3 FS Tremolo H6.0 ZC92 ma ss round
placeholder-shop
B-75030-30-0-8 | DRG ES3 FS w/o PC hole Rondo H1.0 ma ss
placeholder-shop
B-75030-39-0-8 | DRG ES3 FS DIRIG. H7.0 w/o hole ma ss rd
placeholder-shop
B-75030-40-0-8 | DRG ES3 FS DIRIG. H7.0 w/o hole ma ss rd
placeholder-shop
B-75030-50-0-1 | DRG ES3 FS Rondo H1.0 PC72 EV1 round
Hole distance 72 mm | Version with lever handle H1.0
placeholder-shop
B-75030-50-0-8 | DRG ES3 FS Rondo H1.0 PZ72 XM RD
Hole distance 72 mm | Version with lever handle H1.0
placeholder-shop
B-75030-52-0-8 | DRG ES3 FS Belcanto H2.0 PC72 matt ss rd
Hole distance 72 mm | Version with lever handle H2.0
placeholder-shop
B-75030-54-0-8 | DRG ES3 FS Belc.P.H3.0 PC72 ma ss round
Hole distance 72 mm | Version with lever handle H3.0
