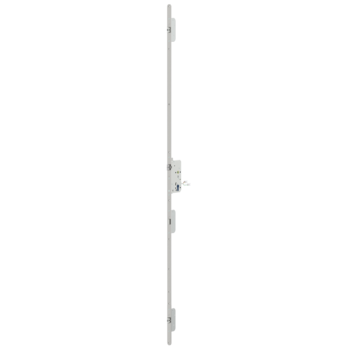

6-37979-02-R-8 | SEC2116S EVP-65/72/24x3/1750/730/760/RK
Part No.6-37979-02-R-8
EAN 4015540847806
4 Variants found
6-37979-01-L-8 | SEC2116S EVP-55/72/24x3/1750/730/760/RK
Part No.6-37979-01-L-8
EAN4015540989988
6-37979-01-R-8 | SEC2116S EVP-55/72/24x3/1750/730/760/RK
Part No.6-37979-01-R-8
EAN4015540005121
6-37979-03-L-8 | SEC2116S EVP-65/72/20x3/1750/730/760/RK
Part No.6-37979-03-L-8
EAN4015540852008
6-37979-03-R-8 | SEC2116S EVP-65/72/20x3/1750/730/760/RK
Part No.6-37979-03-R-8
EAN4015540852015
No content available
Attributes
Backset
65 mm
Faceplate dimension (in mm)
24 x 3
Hole distance
72 mm
Locking type (material short text)
sf2
Interior square of follower
9 mm
Top locking position 1 (A1)
730 mm
Faceplate length
1.750 mm
Type of faceplate
Flachstulp
Locking system
self-locking
Faceplate end
Round
Panic function
Panic function E
Bottom locking position 1 (B1)
760 mm
Marking notch
890 mm
Fire/smoke protection
door-leaf height – for fire-resistant doors
Number of leaves
Single-leaf
A-opener
optional
Suitable for security level
SKG
Version
Lever handle-operated, Automatic, With lock monitoring
Cylinder hole-type
Profile cylinder
Colour of faceplate
stainless steel
Supplement
with lock monitoring, with steel swarf protection sleeves
Latch characteristics
Latchbolt with trigger lever
Handle height
890 mm
Characteristics of deadbolt
Without deadbolt
Finish of lock case
galvanised
Finish of faceplate
matt
Lock case
closed
Width of lock case
90 mm
Lock class
Grade 4
Characteristic of faceplate
Round
Follower
Clamping follower
Single-component material follower
Steel
Single-component material latch
Steel
Single-component material deadbolt
Without deadbolt
Single-component material lock case
Steel
Single-component material faceplate
Stainless steel
Single-component material locking elements
Steel
