6-37979-01-R-8 | SEC2116S EVP-55/72/24x3/1750/730/760/RK
Part No.6-37979-01-R-8
EAN 4015540005121
4 Variants found
6-37979-01-L-8 | SEC2116S EVP-55/72/24x3/1750/730/760/RK
Part No.6-37979-01-L-8
EAN4015540989988

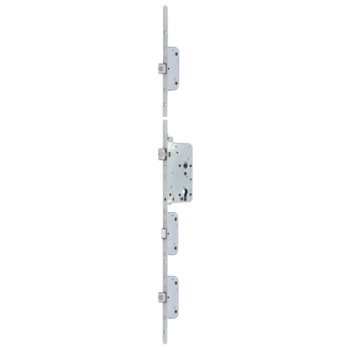

6-37979-02-R-8 | Multi-point lock | SEC2116S EVP-65/72/24x3/1750/730/760/RK
Part No.6-37979-02-R-8
EAN4015540847806
6-37979-03-L-8 | SEC2116S EVP-65/72/20x3/1750/730/760/RK
Part No.6-37979-03-L-8
EAN4015540852008
6-37979-03-R-8 | SEC2116S EVP-65/72/20x3/1750/730/760/RK
Part No.6-37979-03-R-8
EAN4015540852015
No content available
Attributes

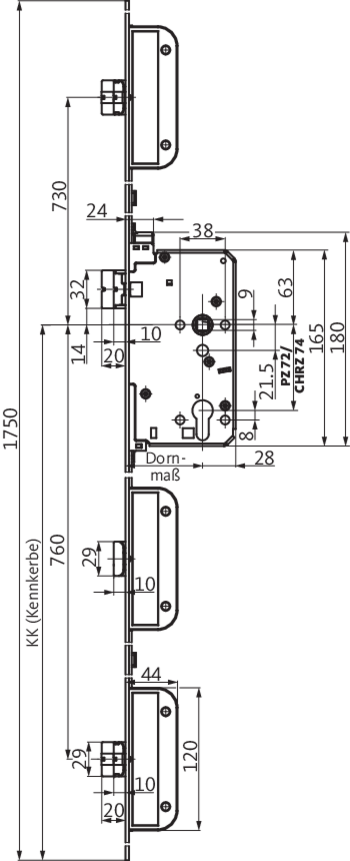

Backset
55 mm
Faceplate dimension (in mm)
24 x 3
Hole distance
72 mm
Locking type (material short text)
sf2
Interior square of follower
9 mm
Top locking position 1 (A1)
730 mm
Faceplate length
1.750 mm
Type of faceplate
Flachstulp
Locking system
self-locking
Fire/smoke protection
door-leaf height – for fire-resistant doors
Number of leaves
Single-leaf
A-opener
optional
Suitable for security level
SKG
Marking notch
890 mm
Panic function
Panic function E
SECURY Special features
with lock monitoring
Cylinder hole-type
Profile cylinder
Faceplate end
Round
Bottom locking position 1 (B1)
760 mm
