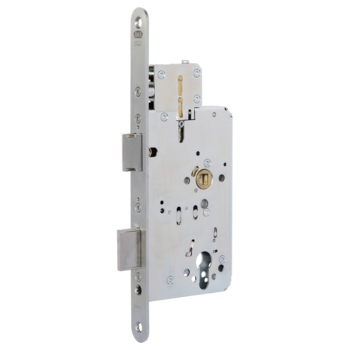

B-23320-46-L-8 | 80/24x285,round,function C,PC
Part No.B-23320-46-L-8
EAN 4015540876448
3 Variants found
B-23320-06-R-8 | Mortise lock | 80/20x285,round,function B,PC
Part No.B-23320-06-R-8
EAN4015540876127
B-23320-08-R-8 | Mortise lock | 100/20x285,round,function B,PC
Part No.B-23320-08-R-8
EAN4015540876141
B-23320-48-L-8 | Mortise lock | 100/24x285,round,function C,PC
Part No.B-23320-48-L-8
EAN4015540876455
No content available
Attributes
Backset
80 mm
Hole distance
72 mm
Panic function
Panic function C
Interior square of follower
9 mm
Faceplate width
24 mm
Finish of faceplate
matt
Faceplate end
round
Version
with top-locking
Follower
One-piece
Single-component material lock case
Steel
Single-component material latch
Steel
Single-component material deadbolt
Steel
Single-component material follower
Steel
Single-component material faceplate
Stainless steel
Latch throw
12 mm
Latch characteristics
with standard latchbolt
Colour of faceplate
stainless steel
Finish of lock case
galvanised
Deadbolt throw
20 mm
Characteristics of deadbolt
Standard
Lock case
closed
Width of lock case
110 mm
Length of lock case
165 mm
Thickness of lock case
15 mm
Deadbolt
2-turn
Characteristic of faceplate
projecting on both sides
Opening direction of hinges
Left
