B 2327 0004 | 32/65x20,rd,DR,latch lever,PC,9,ss
Part No.B 2327 0004
EAN 4015540027659
3 Variants found

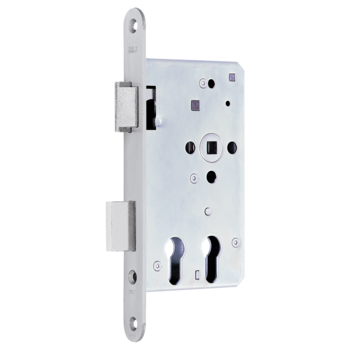

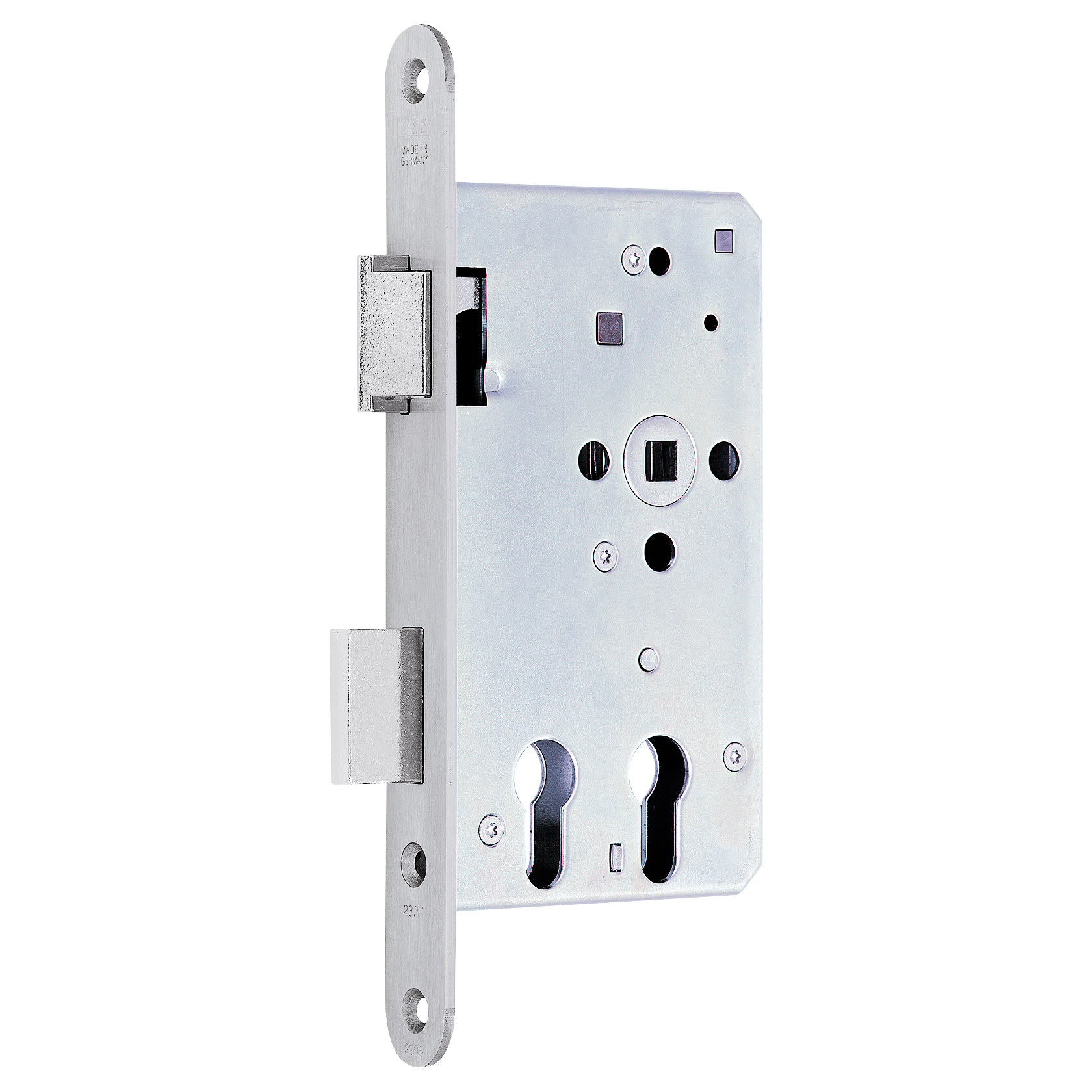

B 2327 0003 | Mortise lock | 32/65x20,rd,DL,latch lever,PC,9,ss
Part No.B 2327 0003
EAN4015540027642
B 2327 0007 | Mortise lock | 32/65x24,rd,DL,latch lever,PC,9,ss
Part No.B 2327 0007
EAN4015540027680
B 2327 0008 | Mortise lock | 32/65x24,rd,DL,latch lever,PC,9,ss
Part No.B 2327 0008
EAN4015540027697
No content available
Attributes
Hole distance
72 mm
Faceplate length
235 mm
Interior square of follower
9 mm
Faceplate width
20 mm
Type of faceplate
Flachstulp
Finish of faceplate
matt
Type of latch
with standard latchbolt
Cylinder hole-type
2x profile cylinders
Faceplate end
round
Version
with double cylinder
Follower
One-piece
Single-component material lock case
Steel
Single-component material latch
Steel
Single-component material deadbolt
Steel
Single-component material follower
Steel
Single-component material faceplate
Stainless steel
Latch throw
12 mm
Latch characteristics
with standard latchbolt
Colour of faceplate
stainless steel
Number of leaves
einflügelig
Type No.
B 2327
Standard
DIN 4102DIN 18250DIN EN 1634
Finish of lock case
galvanised
Test certificates/Standards
DIN 4102, DIN 18250, DIN EN 1634
Deadbolt throw
14 mm
Characteristics of deadbolt
Standard
Lock case
closed
Width of lock case
95 mm
Length of lock case
165 mm
Thickness of lock case
16 mm
Deadbolt
1-turn
Characteristic of faceplate
projecting on both sides
Faceplate thickness
3 mm
Type of door
Smoke protection door, Fire protection door
Door characteristic
Rebated door
Opening direction of hinges
Right
