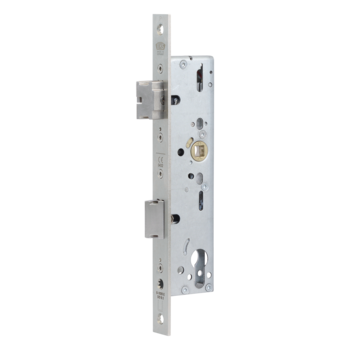

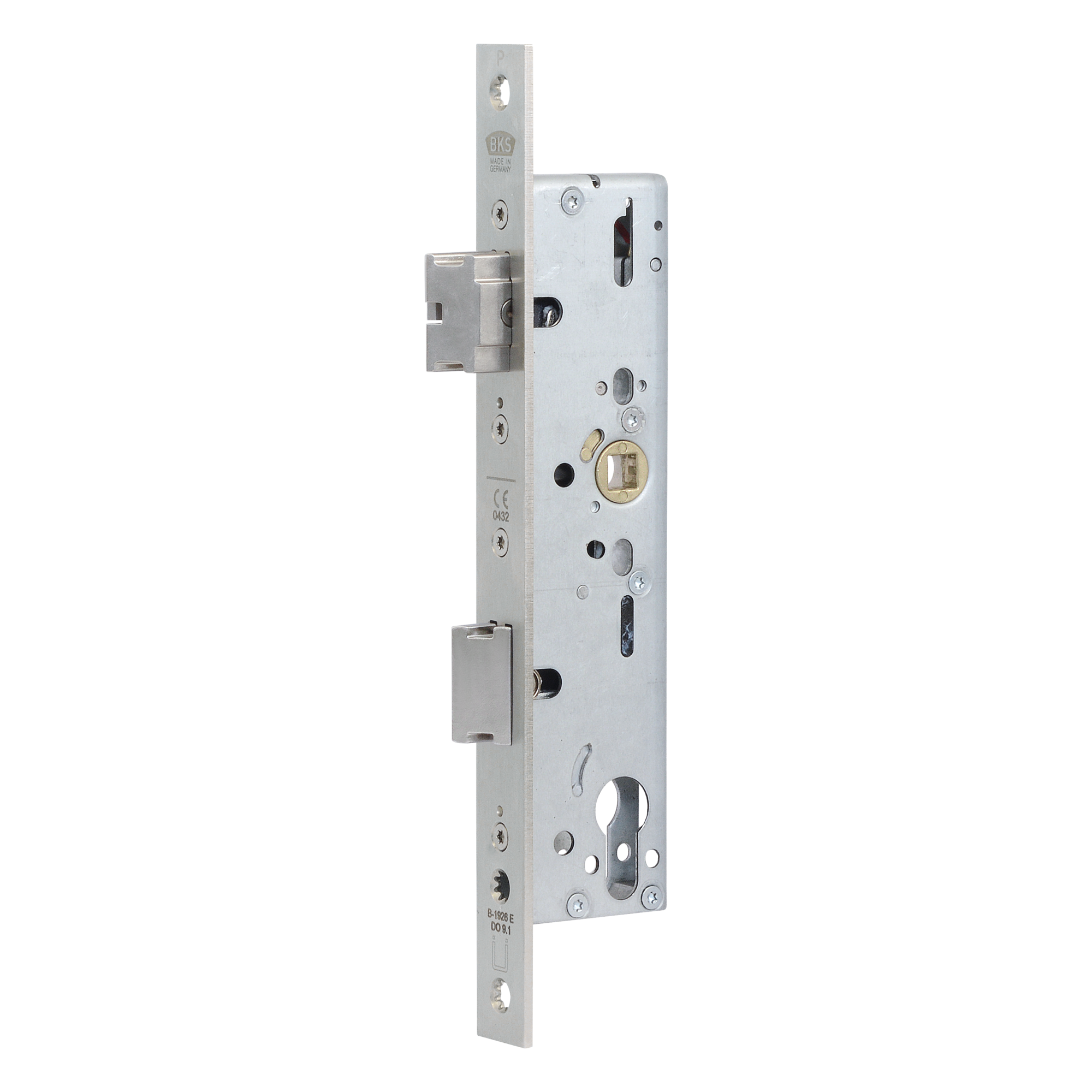

B-19260-00-U-8_ma00

B-19260-01-U-8 | 40/24,square,E,PC,EVP

Part No.B-19260-01-U-8
EAN 4015540920349
Product description Technical data Downloads
Area of application (specified)
Locks
Product type
Mortise lock
Gross weight
714 G
Packing unit
1 EA
Minimum ordering unit
1 EA
Login

Please enter your login credentials to view prices or to order items

11 Variants found
B-19260-00-U-8_ma00
B-19260-00-U-8 | Mortise lock | 35/24,square,E,PC,EVP
Part No.B-19260-00-U-8
EAN4015540920332
To the product
B-19260-00-U-8_ma00
B-19260-02-U-8 | Mortise lock | 45/24,square,E,PC,EVP
Part No.B-19260-02-U-8
EAN4015540920356
To the product
B-19260-00-U-8_ma00
B-19260-03-U-8 | Mortise lock | 34/U-faceplate 24,square,E,PC,EVP
Part No.B-19260-03-U-8
EAN4015540920363
To the product
B-19260-00-U-8_ma00
B-19260-04-U-8 | Mortise lock | 39/U-faceplate 24,square,E,PC,EVP
Part No.B-19260-04-U-8
EAN4015540920370
To the product
B-19260-00-U-8_ma00
B-19260-05-U-8 | Mortise lock | 44/U-faceplate 24,square,E,PC,EVP
Part No.B-19260-05-U-8
EAN4015540920387
To the product
B-19260-00-U-8_ma00
B-19260-06-U-8 | Mortise lock | 35/24,square,E,Swiss round cylinder,EVP
Part No.B-19260-06-U-8
EAN4015540920394
To the product
B-19260-00-U-8_ma00
B-19260-07-U-8 | Mortise lock | 40/24,square,E,Swiss round cylinder,EVP
Part No.B-19260-07-U-8
EAN4015540920400
To the product
B-19260-00-U-8_ma00
B-19260-12-U-8 | Mortise lock | 35/24,sq,E,PC,lock monitor.,no cable,EVP
Part No.B-19260-12-U-8
EAN4015540920455
To the product
B-19260-00-U-8_ma00
B-19260-14-U-8 | Mortise lock | 45/24,sq,E,PC,lock monitor.,no cable,EVP
Part No.B-19260-14-U-8
EAN4015540920479
To the product
B-19260-00-U-8_ma00
B-19260-15-U-8 | Mortise lock | 34/U-face24,sq,E,PC,lock mo,no cable,EVP
Part No.B-19260-15-U-8
EAN4015540920486
To the product
B-19260-00-U-8_ma00
B-19260-18-U-8 | Mortise lock | 35/24,sq,E,CH-RC,lock mon,no cable,EVP
Part No.B-19260-18-U-8
EAN4015540920516
To the product
View all variants
No content available

Attributes

Backset
40 mm
Hole distance
92 mm
Panic function
Panic function E
Interior square of follower
9 mm
Faceplate width
24 mm
Finish of faceplate
matt
Faceplate end
Square
Version
self-locking
Follower
Special follower
Single-component material lock case
Steel
Single-component material latch
Steel
Single-component material deadbolt
Steel
Single-component material follower
Steel
Single-component material faceplate
Stainless steel
Latch throw
12 mm
Latch throw locked
20 mm
Latch characteristics
with standard latchbolt
Colour of faceplate
stainless steel
Standard
DIN 18250DIN EN 179DIN EN 1125
Finish of lock case
galvanised
Deadbolt throw
20 mm
Characteristics of deadbolt
Automate
Lock case
closed
Width of lock case
52 mm
Length of lock case
200 mm
Thickness of lock case
18 mm
Deadbolt
2-turn
Characteristic of faceplate
projecting on both sides
Opening direction of hinges
Left/right

Installation and assembly instructions

General installation instructions for locking devices according to EN 1125, EN 179, EN 12209, EN 14846
PDF (4MB)
Deutsch, Englisch, Französisch, Spanisch
Installation instructions for RR locks
PDF (14MB)
Neutral, Deutsch
Quick guide B-18xxx B-19xxx neutral
PDF (2MB)
Neutral, Deutsch, Englisch
installation instructions for EVP electrically-locking panic lock
PDF (5MB)
Deutsch

Catalogue data in PDF format

B-19260-01-U_kd01.pdf
PDF (1MB)
