B-18410-00-U-8 | 34/U-faceplate 24,square,function B,PC
Part No.B-18410-00-U-8
EAN 4015540800368
6 Variants found
B-18410-01-U-8 | Mortise lock | 39/U-faceplate 24,square,function B,PC
Part No.B-18410-01-U-8
EAN4015540800375
B-18410-02-U-8 | Mortise lock | 44/U-faceplate 24,square,function B,PC
Part No.B-18410-02-U-8
EAN4015540800382

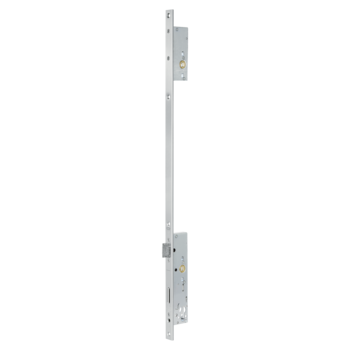

B-18410-03-U-8 | Mortise lock | 34/U-faceplate 24x5,square,function B,PC
Part No.B-18410-03-U-8
EAN4015540800399
B-18410-06-U-8 | Mortise lock | 65/24,round,function B,PC
Part No.B-18410-06-U-8
EAN4015540894114
B-18410-08-U-8 | Mortise lock | 45/24,rd,B,PC,panic funct.on 1050mm
Part No.B-18410-08-U-8
EAN4015540039867
B-18410-17-U-8 | Mortise lock | 35/24,square,B,PC
Part No.B-18410-17-U-8
EAN4015540970986
View all variants
No content available
Attributes
Backset
34 mm
Hole distance
92 mm
Panic function
Panic function B
Interior square of follower
9 mm
Faceplate width
24 mm
Finish of faceplate
matt
Version
with additional lever handle height 1500 mm
Follower
Special follower
Single-component material lock case
Steel
Single-component material latch
Steel
Single-component material deadbolt
Steel
Single-component material follower
Steel
Single-component material faceplate
Stainless steel
Latch throw
13 mm
Latch characteristics
with reversible latch (LH/RH)
Colour of faceplate
stainless steel
Finish of lock case
galvanised
Deadbolt throw
21 mm
Characteristics of deadbolt
Standard
Lock case
closed
Width of lock case
47 mm
Length of lock case
202 mm
Thickness of lock case
15,5 mm
Deadbolt
2-turn
Characteristic of faceplate
projecting on both sides
Opening direction of hinges
Left/right
