B 1327 0001_ma00

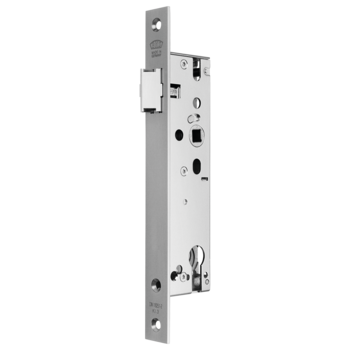

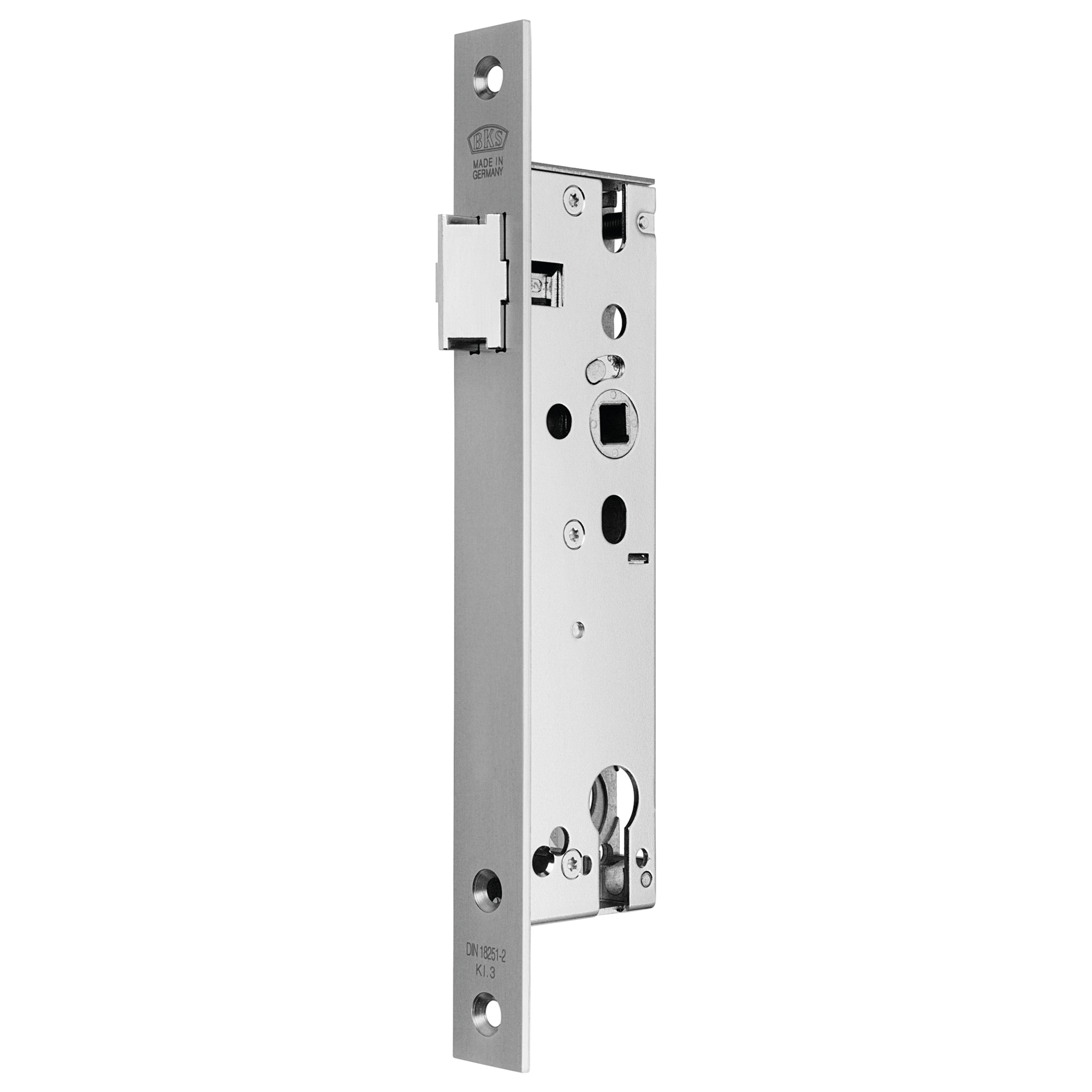

B 1327 0004 | 40/24x245,sq,DL,PC,8,latch only,ss

Part No.B 1327 0004
EAN 4015540584893
Product description Technical data Downloads
Area of application
Door technology
Area of application (specified)
Locks
Product type
Mortise lock
Gross weight
0.547 KG
Packing unit
1 EA
Minimum ordering unit
1 EA
Login

Please enter your login credentials to view prices or to order items

19 Variants found
B 1327 0001_ma00
B 1327 0001 | Mortise lock | 25/24x245,sq,PC,8,latch,stainless steel
Part No.B 1327 0001
EAN4015540584862
To the product
B 1327 0001_ma00
B 1327 0002 | Mortise lock | 30/24x245,sq,PC,8,latch,stainless steel
Part No.B 1327 0002
EAN4015540584879
To the product
B 1327 0001_ma00
B 1327 0003 | Mortise lock | 35/24x270,sq,PC,8,latch only,ss
Part No.B 1327 0003
EAN4015540584886
To the product
B 1327 0001_ma00
B 1327 0005 | Mortise lock | 45/24x245,sq,DL,PC,8,latch only,ss
Part No.B 1327 0005
EAN4015540584909
To the product
B 1327 0001_ma00
B 1327 0012 | Mortise lock | 30/24x245,sq,DL,PC,8,latch,nickel-silver
Part No.B 1327 0012
EAN4015540596001
To the product
B 1327 0001_ma00
B 1327 0013 | Mortise lock | 35/24x245,sq,DL,PC,8,latch,nickel-silver
Part No.B 1327 0013
EAN4015540612367
To the product
B 1327 0001_ma00
B 1327 0014 | Mortise lock | 40/24x245,sq,DL,PC,latch,nickel-silver
Part No.B 1327 0014
EAN4015540654527
To the product
B 1327 0001_ma00
B 1327 0021 | Mortise lock | 24/U24x6x268,sq,DL,PC,8,latch,ss
Part No.B 1327 0021
EAN4015540779510
To the product
B 1327 0001_ma00
B 1327 0022 | Mortise lock | 29/U24x6x268,sq,DL,PC,8,latch,ss
Part No.B 1327 0022
EAN4015540779527
To the product
B 1327 0001_ma00
B 1327 0023 | Mortise lock | 34/U24x6x268,sq,DL,PC,8,latch,ss
Part No.B 1327 0023
EAN4015540699214
To the product
B 1327 0001_ma00
B 1327 0024 | Mortise lock | 39/U24x6x268,sq,DL,PC,8,latch,ss
Part No.B 1327 0024
EAN4015540712333
To the product
B 1327 0001_ma00
B 1327 0025 | Mortise lock | 44/U24x6x268,sq,DL,PC,8,latch,ss
Part No.B 1327 0025
EAN4015540779534
To the product
B 1327 0001_ma00
B 1327 0032 | Mortise lock | 29/U24x6x245,sq,DL,PC,latch,ss
Part No.B 1327 0032
EAN4015540584831
To the product
B 1327 0001_ma00
B 1327 0033 | Mortise lock | 34/U24x6x245,sq,DL,PC,latch,ss
Part No.B 1327 0033
EAN4015540584718
To the product
B 1327 0001_ma00
B 1327 0035 | Mortise lock | 44/U24x245,sq,DL,PC,8,latch,ss
Part No.B 1327 0035
EAN4015540584855
To the product
B 1327 0001_ma00
B 1327 0041 | Mortise lock | 25/24x270,sq,DL,PC,8,latch,ss
Part No.B 1327 0041
EAN4015540701801
To the product
B 1327 0001_ma00
B 1327 0042 | Mortise lock | 30/24x270,sq,DL,PC,8,latch,ss
Part No.B 1327 0042
EAN4015540630347
To the product
B 1327 0001_ma00
B 1327 0043 | Mortise lock | 35/24x270,sq,DL,PC,8,latch,ss
Part No.B 1327 0043
EAN4015540630354
To the product
B 1327 0001_ma00
B 1327 0044 | Mortise lock | 40/24x270,sq,DL,PC,8,latch,ss
Part No.B 1327 0044
EAN4015540623585
To the product
View all variants
No content available

Attributes

Backset
40 mm
Hole distance
92 mm
Faceplate length
245 mm
Interior square of follower
8 mm
Faceplate width
24 mm
Type of faceplate
Flachstulp
Finish of faceplate
matt
Follower
One-piece
Single-component material lock case
Steel
Single-component material latch
Zinc die-cast
Single-component material follower
Steel
Single-component material faceplate
Stainless steel
Latch throw
11 mm
Latch characteristics
with reversible latch (LH/RH)
Colour of faceplate
stainless steel
Number of leaves
einflügelig
Finish of lock case
galvanised
Lock case
Open
Width of lock case
52 mm
Length of lock case
181 mm
Thickness of lock case
16 mm
Characteristic of faceplate
projecting on both sides
Faceplate thickness
3 mm
Type of door
Narrow stile door
Door characteristic
Flush door
Door material
Aluminium, Steel
Opening direction of hinges
Left/right
