B 1325 0001_ma00

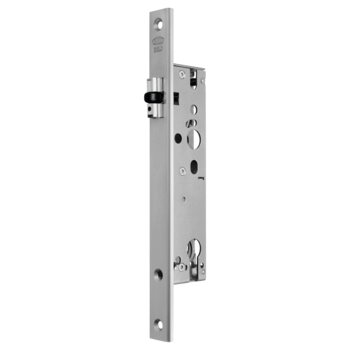

B 1325 0003 | 35/24x245,sq,PC,roller latch,stain.steel

Part No.B 1325 0003
EAN 4015540584794
Product description Technical data Downloads
Area of application
Door technology
Area of application (specified)
Locks
Product type
Mortise lock
Gross weight
0.452 KG
Packing unit
1 EA
Minimum ordering unit
1 EA
Login

Please enter your login credentials to view prices or to order items

10 Variants found
B 1325 0001_ma00
B 1325 0001 | Mortise lock | 25/24x245,sq,PC,roller latch,stain.steel
Part No.B 1325 0001
EAN4015540584770
To the product
B 1325 0001_ma00
B 1325 0002 | Mortise lock | 30/24x245,sq,PC,roller latch,stain.steel
Part No.B 1325 0002
EAN4015540584787
To the product
B 1325 0001_ma00
B 1325 0004 | Mortise lock | 40/24x245,sq,PC,roller latch,stain.steel
Part No.B 1325 0004
EAN4015540584800
To the product
B 1325 0001_ma00
B 1325 0005 | Mortise lock | 45x24x245,sq,PC,roller latch,stain.steel
Part No.B 1325 0005
EAN4015540584817
To the product
B 1325 0001_ma00
B 1325 0014 | Mortise lock | 40/24x245,sq,PC,roller latch,nickel silv
Part No.B 1325 0014
EAN4015540927454
To the product
B 1325 0001_ma00
B 1325 0033 | Mortise lock | 34/U24x6x245,sq,PC,roller latch,ss
Part No.B 1325 0033
EAN4015540584701
To the product
B 1325 0001_ma00
B 1325 0042 | Mortise lock | 30/24x270,sq,PC,roller latch,ss
Part No.B 1325 0042
EAN4015540698415
To the product
B 1325 0001_ma00
B 1325 0043 | Mortise lock | 35/24x270,square,PC,roller latch,ss
Part No.B 1325 0043
EAN4015540681356
To the product
B 1325 0001_ma00
B 1325 0044 | Mortise lock | 40/24x270,square,PC,roller latch,ss
Part No.B 1325 0044
EAN4015540670817
To the product
B 1325 0001_ma00
B 1325 0046 | Mortise lock | 45/24x270,sq,PC,roller latch,ss
Part No.B 1325 0046
EAN4015540023347
To the product
View all variants
No content available

Attributes

Backset
35 mm
Hole distance
92 mm
Faceplate length
245 mm
Faceplate width
24 mm
Type of faceplate
Flachstulp
Finish of faceplate
matt
Version
Without deadbolt
Single-component material lock case
Steel
Single-component material roller latch
Zinc die-cast
Single-component material faceplate
Stainless steel
Colour of faceplate
stainless steel
Number of leaves
einflügelig
Finish of latch
nickel-plated
Finish of lock case
galvanised
Characteristics of deadbolt
Without
Max. adjustable range of roller latch
10 mm
Min. adjustable range of roller latch
2 mm
Characteristic of roller latch
with silent latch feature, adjustable
Lock case
Open
Width of lock case
47 mm
Length of lock case
181 mm
Thickness of lock case
16 mm
Characteristic of faceplate
projecting on both sides
Faceplate thickness
3 mm
Type of door
Narrow stile door
Door characteristic
Flush door
Door material
Aluminium, Steel
Opening direction of hinges
Left/right
