6-33767-01-R-8_kd30

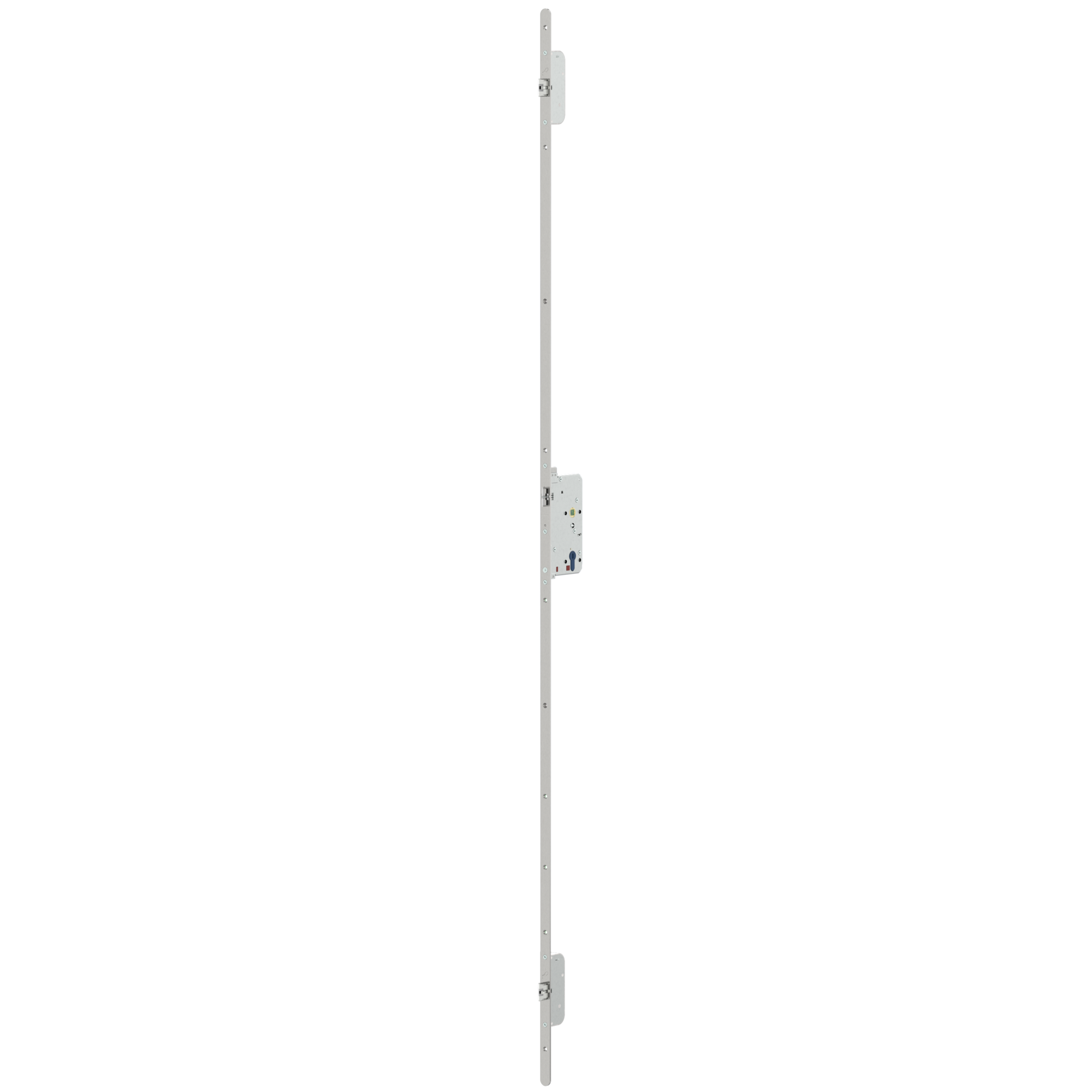

6-33767-01-R-8 | SEC2110-65/72/20x3/949/1777,5/700/790/RK

Part No.6-33767-01-R-8
EAN 4015596941961
Product description Technical data Downloads
Area of application (specified)
Locks
Description of finish
Ground stainless steel
Gross weight
2.173 KG
Packing unit
1 EA
Minimum ordering unit
1 EA
Login

Please enter your login credentials to view prices or to order items

8 Variants found
6-33767-01-L-8_kd30
6-33767-01-L-8 | SEC2110-65/72/20x3/949/1777,5/700/790/RK
Part No.6-33767-01-L-8
EAN4015596941954
To the product
6-33767-02-L-8_kd30
6-33767-02-L-8 | SEC2119-65/72/20x3/949/1777,5/700/790/RK
Part No.6-33767-02-L-8
EAN4015596941978
To the product
6-33767-04-L-8_kd30
6-33767-04-L-8 | SEC2116-65/72/20x3/949/1777,5/700/790/RK
Part No.6-33767-04-L-8
EAN4015540624704
To the product
6-33767-04-R-8_kd30
6-33767-04-R-8 | SEC2116-65/72/20x3/949/1777,5/700/790/RK
Part No.6-33767-04-R-8
EAN4015540624711
To the product
6-33767-08-L-8_kd30
6-33767-08-L-8 | SEC2111-65/72/24x3/1050/2400/700/790
Part No.6-33767-08-L-8
EAN4015596979025
To the product
6-33767-08-R-8_kd30
6-33767-08-R-8 | SEC2111-65/72/24x3/1050/2400/700/790
Part No.6-33767-08-R-8
EAN4015596979049
To the product
6-33767-30-L-8_kd30
6-33767-30-L-8 | SEC2116-65/72/24x3/949/1777,5/700/790/RK
Part No.6-33767-30-L-8
EAN4015540834691
To the product
6-33767-33-L-8_kd30
6-33767-33-L-8 | Multi-point lock | SEC2116-80/72/24x3/949/1777.5/700/790/RK
Part No.6-33767-33-L-8
EAN4015540856662
To the product
View all variants
No content available

Attributes

Backset
65 mm
Faceplate dimension (in mm)
20 x 3
Hole distance
72 mm
Locking type (material short text)
sf2
Interior square of follower
9 mm
Top locking position 1 (A1)
700 mm
Faceplate length
1.777,5 mm
Type of faceplate
Flachstulp
Locking system
self-locking
Single-component material deadbolt
Without deadbolt
Single-component material lock case
Steel
Single-component material faceplate
Stainless steel
Single-component material locking elements
Steel
Supplement
with steel swarf protection sleeves
Latch characteristics
Latchbolt with trigger lever
Colour of faceplate
stainless steel
Fire/smoke protection
door-leaf height – for fire-resistant doors
Number of leaves
Single-leaf
A-opener
optional
Number of additional locks
2
Handle height
949 mm
Marking notch
949 mm
Finish of lock case
galvanised
Finish of faceplate
matt
Panic function
Panic function B
Characteristics of deadbolt
Without deadbolt
Cylinder hole-type
Profile cylinder
Lock case
closed
Width of lock case
90 mm
Lock class
Grade 4
Characteristic of faceplate
round
Faceplate end
Round
Type of door
Fire protection door, Smoke protection door, Anti-panic door, Escape door
Bottom locking position 1 (B1)
790 mm
Version
Lever handle-operated, Automatic
Follower
Clamping follower
Single-component material follower
Steel
Single-component material latch
Steel

Installation and assembly instructions

General installation instructions for locking devices according to EN 1125, EN 179, EN 12209, EN 14846
PDF (4MB)
Deutsch, Englisch, Französisch, Spanisch
Installation instructions for HS locks
PDF (13MB)
Neutral, Deutsch

Catalogue data in PDF format

6-33767-01-R-x_kd01.pdf
PDF (1MB)
Deutsch, Englisch
