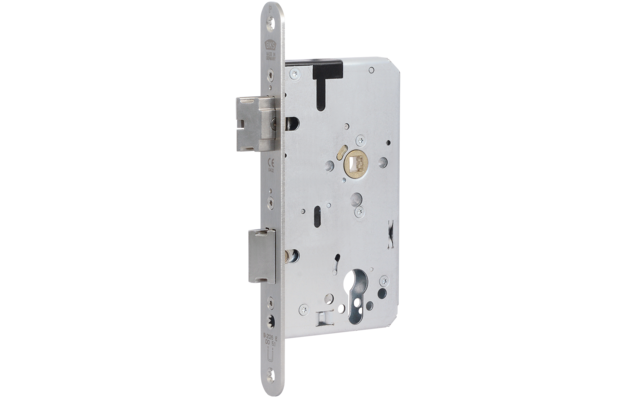

Electrically locking panic locks for timber and steel doors
With our EVP electrically-locking panic locks for single-leaf wooden and steel doors, the installation of additional locking elements is not required. The combination of a self-locking panic lock and an electric escape-door locking device provides a compact solution, offering significant planning and time savings for architects and fabricators.
The EVP electrically-locking panic lock features standard DIN lock case dimensions and can therefore be retrofitted at any time. Additional milling in the door leaf or in the frame above the latch striker is not necessary.
The integrated automatic latch bolt ensures that the door is always locked—manual locking is not required. By positioning the locking point of the electric locking device in the area of the latch striker, it is located centrally in the door, thus preventing the door leaf from warping.
Features
-
Electrically locking panic locks enable controlled access and safe escape in an emergency.
-
Thanks to their compact design, the locks are ideally suited for single-leaf wooden and steel doors.
-
The locks can be combined with standard profile cylinders and door fittings; a freewheel cylinder is not required.
- Depending on the area of application, variants with monitoring contacts are available.
- The robust construction is specially designed for use in heavily frequented public buildings.
- Easy integration into existing access control systems and building technologies ensures a consistent security concept
Electrically locking panic locks: The right choice—not only in terms of security
Electrically locking panic locks for wooden and steel doors combine proven escape door technology with modern access control. Whether in public buildings, administrative facilities, or security-relevant institutions – thanks to various versions and functions, these locks can be optimally integrated into any electronic security concept.
Reliability
The reliable mechanics ensure consistently dependable operation even with high usage frequency. Ideal for use in residential, commercial, and fire protection doors.
Versatility
Whether panic function, escape door approval, or quiet door closing—mortise locks for timber and steel doors can be flexibly adapted to door profile, standards, and usage situation.
Technical data & standards
| Products | Type of lock | Usable in | Panic function | Top locking mechanism | Secured latch retention | Lock monitoring | Type | Note | |
|---|---|---|---|---|---|---|---|---|---|
| 1-leaf | 2-leaf | ||||||||
| Panic locks Series 21 EVP (self-locking) |
Electrically locking panic locks (EVP) |
X | - | B | - | - | Optional | B-2120 | |
| X | - | E | - | - | Optional | B-2126 | |||
| Multipoint locking system, electrically lockable (EVP electrically-locking panic lock) | X | - | B | - | - | Optional | SECURY 2110 EVP |
Can be combined with A-opener |
|
| X | - | E | - | - | Optional | SECURY 2116 EVP |
|||
Standards and security requirements
Electrically locking panic locks for wooden and steel doors meet the highest security requirements and are approved according to current standards. In addition, the locks are suitable for fire and smoke protection and carry the CE marking for the European market. This ensures that these locks can be reliably integrated into modern escape security concepts.
suitability for fire protection
Approved for use on fire and smoke protection doors
Emergency exit devices with lever handle or push plate for doors in escape routes
The EN 179 standard refers to emergency exit devices intended for use in buildings where it is expected that people familiar with the escape route can quickly and safely reach an exit in an emergency. These locking systems are designed to be easily opened in the event of an emergency. They require only a simple hand movement without the use of keys or similar aids. EN 179 specifies requirements for the design and performance of such systems to ensure their reliability and safety.
panic-break-out hardware with horizontal operating bar
DIN EN 1125 refers to panic exit devices with integrated latch that are equipped with a horizontal operating bar. This standard specifies the requirements and test methods for emergency exit devices intended for use in public buildings to ensure a quick and safe exit in case of emergency. The devices must be designed so that they can be easily operated even under panic conditions.
mechanically operated locks and strike plates
EN 12209 is a European standard that deals with mechanical locks and striking plates for doors. This standard defines the requirements for security, functionality, and durability of mechanical locks. It includes test procedures for evaluating the performance of these products in various categories such as durability, corrosion resistance, and resistance to tampering.
VDS
Profile cylinders with this marking are available in VdS version.Find the right support quickly!
